Real photos of this build
Specifications & details
Key Specifications
Confirmed build information for project R003. No guaranteed load rating is included.
| Project ID | R003 |
|---|---|
| Series | R Series — Retail Display Racks |
| Product | Halloween Multi-Compartment Floor Display |
| Overall Dimensions | 550 × 400 × 1500 mm |
| Board Structure | Combined CB and EB Corrugated Board |
| Outer Facing | 290 gsm White Card |
| Printing | Offset Printing |
| Surface Finish | Gloss Lamination |
| Base | 150 mm Raised Base |
| Steel Tubes | Not included in this batch |
| MOQ | 100 units |
| Production Lead Time | Approximately 15 days |
Engineering & Structure

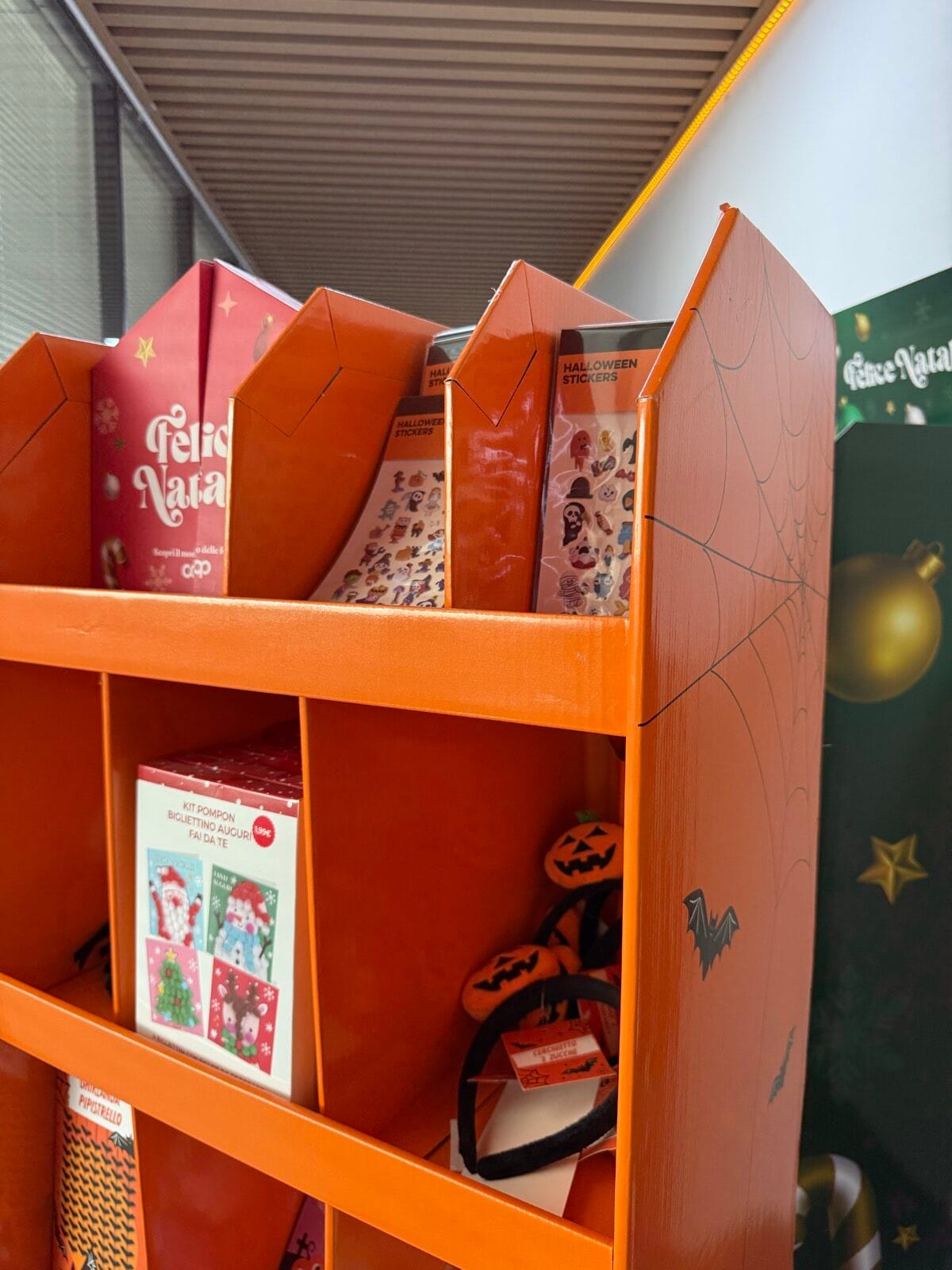

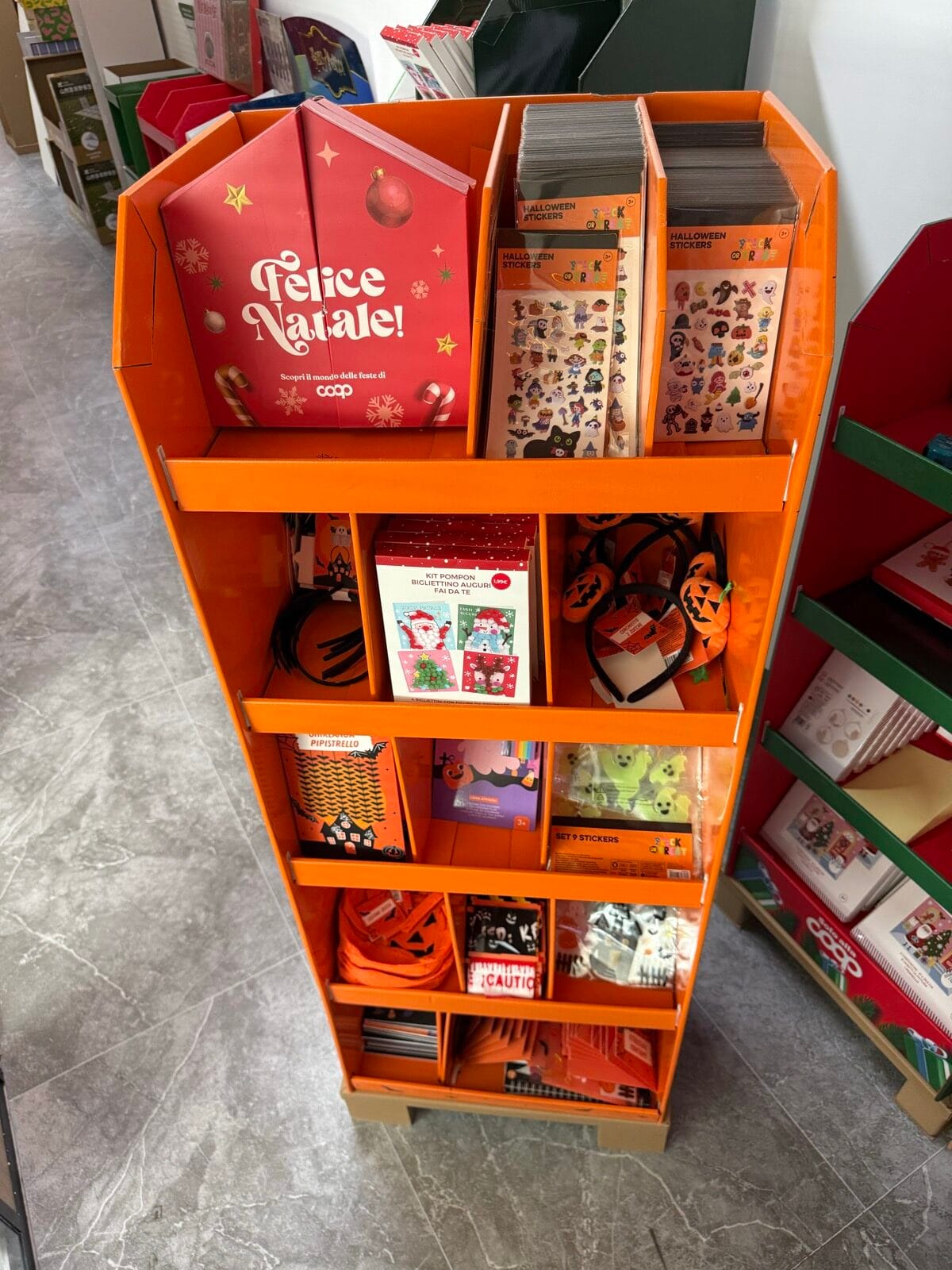

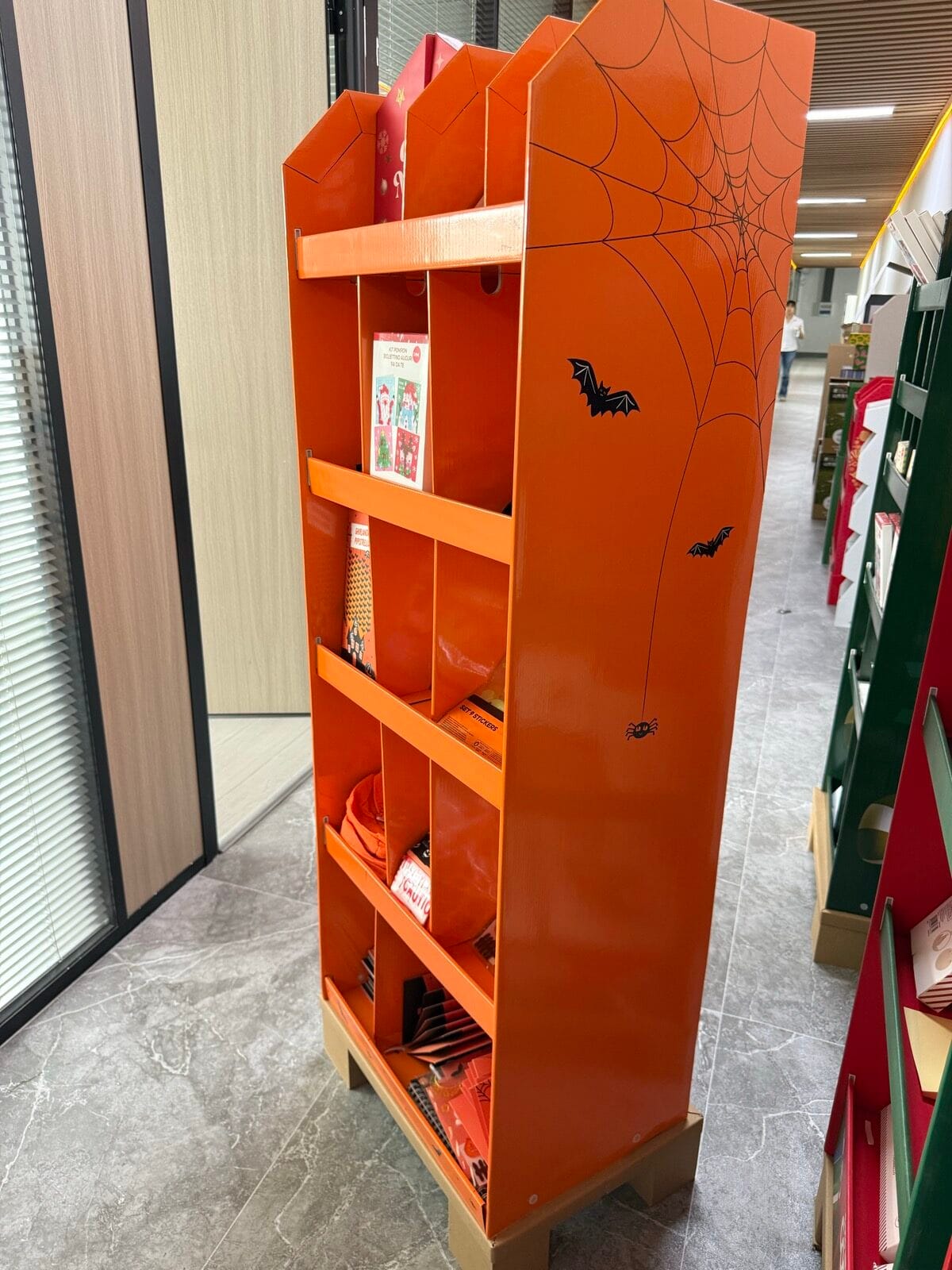

Multi-compartment product presentation
The display uses combined CB and EB corrugated board to form the body and product compartments. Its outer facing is 290 gsm white card.

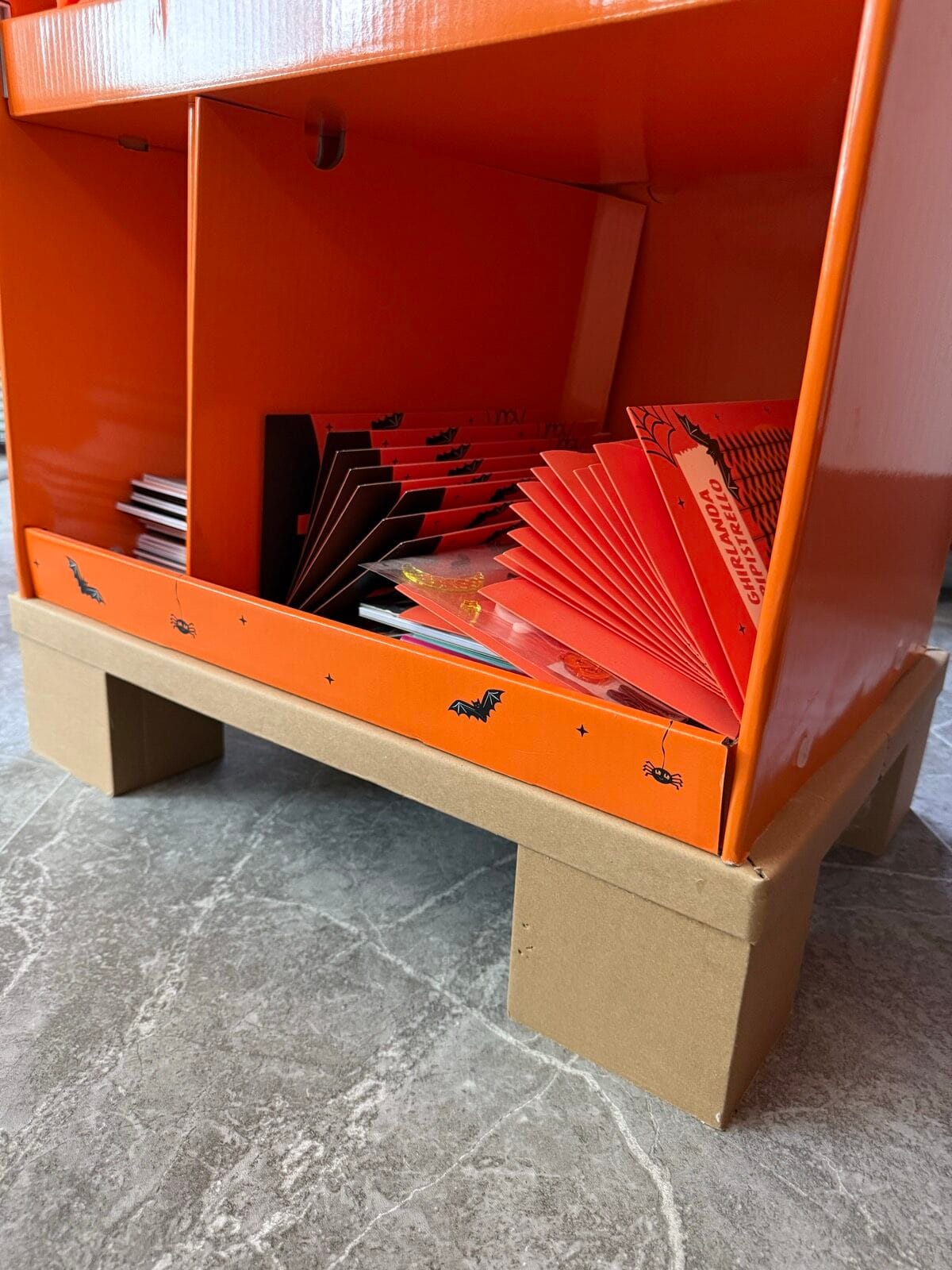

Printed panels and raised base
Offset printing reproduces the Halloween graphics, with gloss lamination as the surface finish. A 150 mm raised base is included in this build.
Reinforcement options
The photographed batch contains no steel tubes. A separate steel-tube reinforcement option can be discussed for a future custom specification. Any load rating requires review of the relevant test conditions and records.
Project Highlights

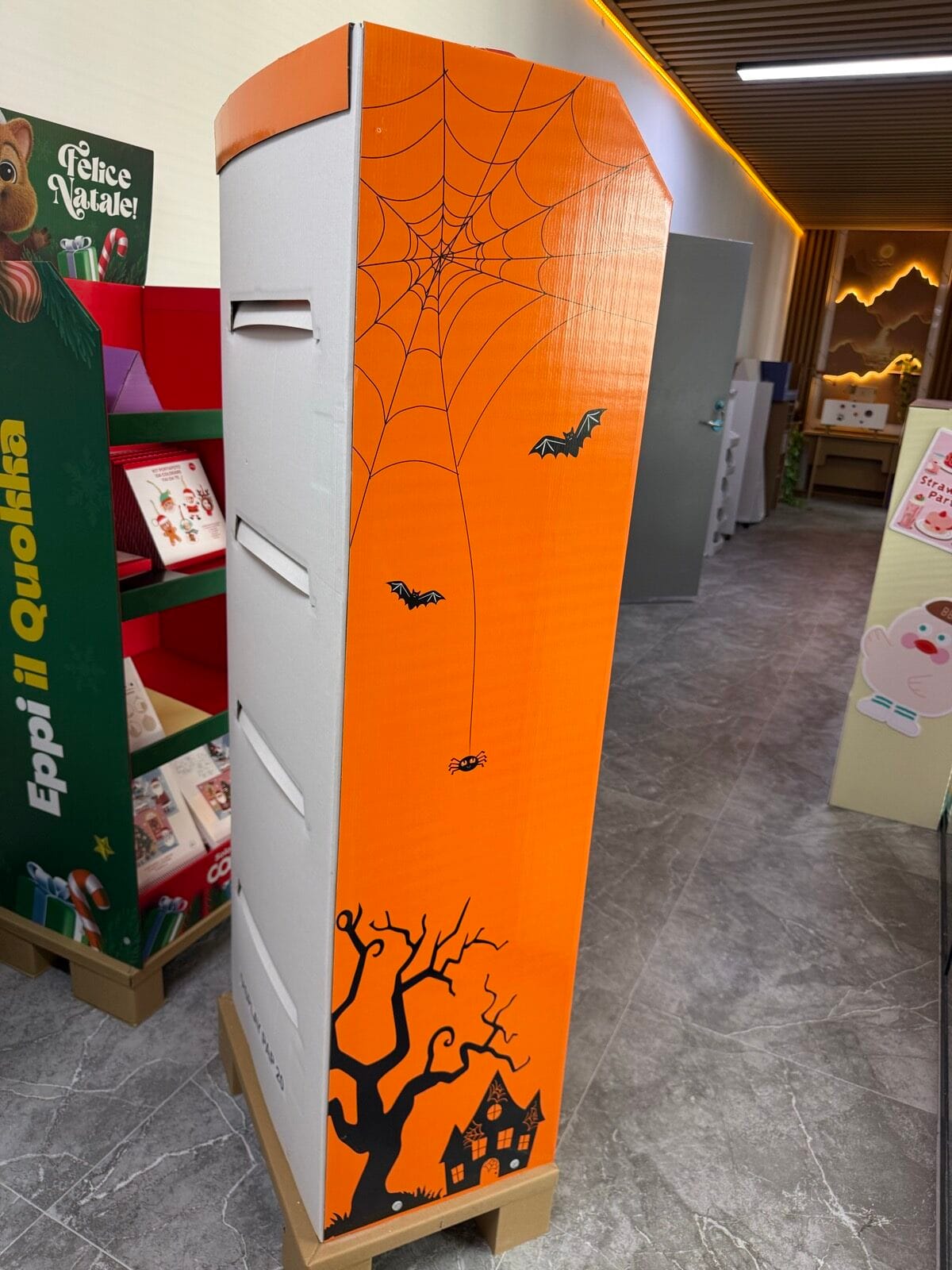

Seasonal graphics
The orange Halloween artwork is applied to the display panels using offset printing and gloss lamination.
Sampling before production
A paid sample can be reviewed before the production order. Remote video inspection of a white sample is supported; physical sample freight is paid by the customer.
Frequently Asked Questions
What materials are used in R003?
This build combines CB and EB corrugated board with a 290 gsm white card outer facing. It is offset printed and finished with gloss lamination.
Does the photographed display include steel tubes?
No. This batch contains no steel tubes. An optional steel-tube reinforcement solution can be discussed for a separate specification; it is not part of the photographed build.
What load capacity can be specified?
A guaranteed load rating is not stated for this case. The test conditions and records must be reviewed before a specific load capacity is included in a quotation or specification.
What are the MOQ and production lead time?
The MOQ is 100 units. Production lead time is approximately 15 days.
How does sampling work?
The customer pays the sampling fee upfront. Subject to agreement, the fee may be credited against the final balance of the production order. Remote video inspection of a white sample is supported. If a physical sample is shipped, freight is paid by the customer.
